होम उत्पादWire to Board Connector

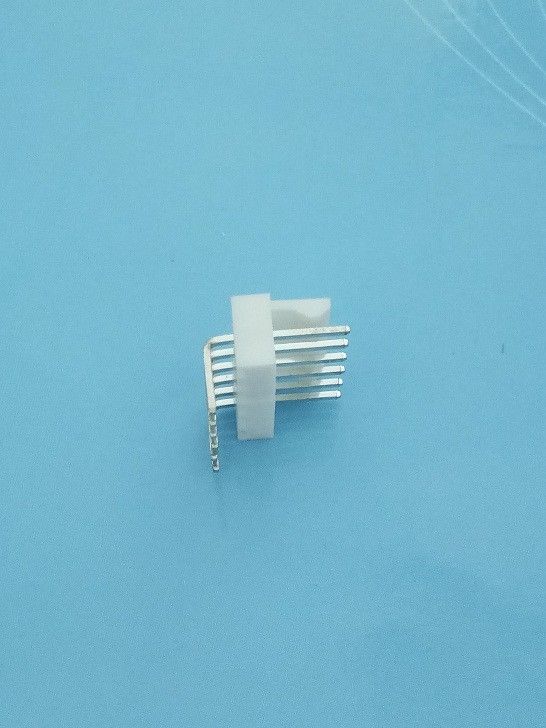

Female 2.54mm Pitch PCB Wire to Board Connector Short Type Right Angle

Female 2.54mm Pitch PCB Wire to Board Connector Short Type Right Angle

    • Female 2.54mm Pitch PCB Wire to Board Connector Short Type Right Angle
    • Female 2.54mm Pitch PCB Wire to Board Connector Short Type Right Angle
    • Female 2.54mm Pitch PCB Wire to Board Connector Short Type Right Angle
  • Female 2.54mm Pitch PCB Wire to Board Connector Short Type Right Angle

    उत्पाद विवरण:

    Place of Origin: China
    ब्रांड नाम: JVT
    प्रमाणन: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT8001WN2-XXSNRS-D-A

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1000 PCS
    मूल्य: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    pitch: 2.54mm wire applicable: AWG 28 - 32#
    Cross: molex Voltage ratingt: 50V
    Application: PCB Gender: female

    Molex 2510 connector 2.54mm pitch wire to board connector​





    Specification Standardized:





    contact space

    2.54mm

    poles

      2-16

    Applicable wire

    AWG#28 - 32

    Rating Voltage

    250V AC/DC

    Rating Current

    3A AC/DC

    Voltage Withstand

    1000V AC/minute

    Operating temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.





    Female 2.54mm Pitch PCB Wire to Board Connector Short Type Right Angle



    Material Specification :



    Terminal:

          Phosphor Bronze ,Gold plated

    Housing:

    Nylon66 UL94V-0

    Wafer:

    Nylon 6T UL94V-0

    PIN:

    Brass,Gold plated





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    Service

    Country of Origin

    Experienced Staff

    Guarantee/Warranty

    International Approvals

    Price

    Prompt Delivery

    Quality Approvals





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America







    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
