| Place of Origin: | China |
| ब्रांड नाम: | JNT |
| प्रमाणन: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2134 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| मूल्य: | बातचीत योग्य |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| pitch: | 2.54mm | equivalent: | molex 52134 seires |
|---|---|---|---|
| color: | black | contact: | 20 |
| प्रमुखता देना: | male to female connectors,pin socket electrical connectors |
||
Material Specifications:
|
Terminal |
Phosphor Bronze,Glod plated |
|
Housing |
PA66+15%GF. |
|
wafer |
|
|
PIN: |
|

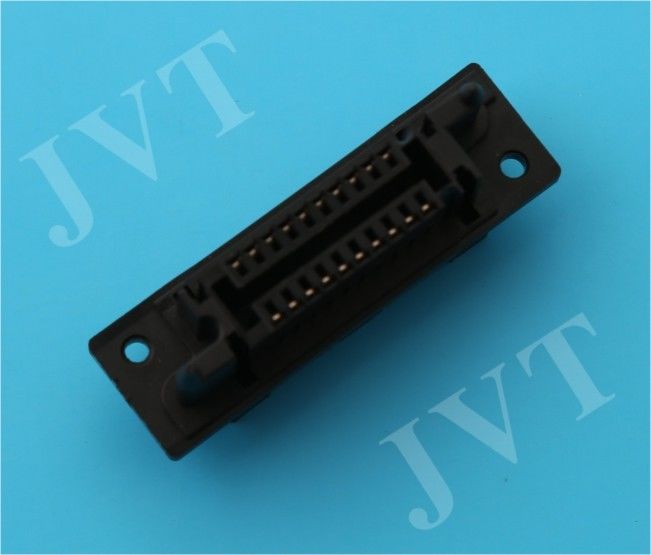

Molex 52134 Seires 20 Multi Pin Connectors JSL Wire to Wire 2.54mm Pitch
2.54mm Pitch JSL Wire-to-Wire Drawer Connector, Plug, Multi-Mount,20poles
Standard Specifications:
|
Scale / Pitch |
2.54mm |
|
Poles / Cables |
2X10 (20Pin) |
|
Applicable wire |
|
|
Rating Voltage |
250V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1500V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
