| Place of Origin: | China |
| ब्रांड नाम: | JVT |
| प्रमाणन: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2500 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| मूल्य: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| color: | red | equivalent: | JAE |
|---|---|---|---|
| pitch: | 2.5mm | poles: | 2 - 15 |

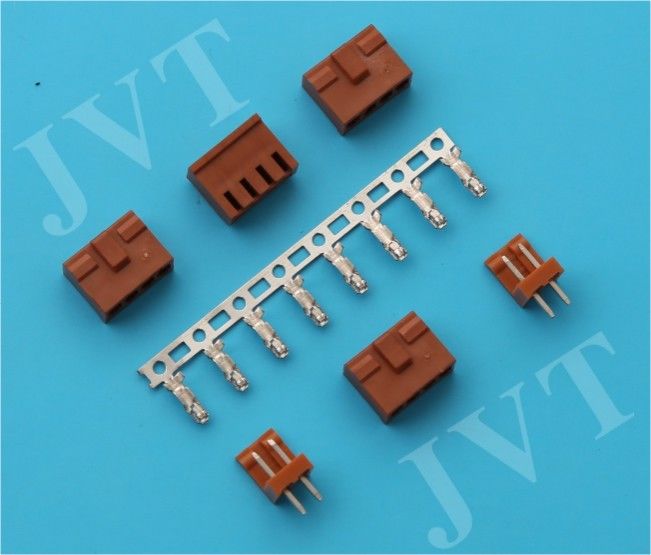

JAE 2 Pole Wire to Board Electronic Wire Connectors for AWG#22-28 Applicable Wire
Detailed Features:
|
Part Number |
JVT2500 |
|
Description |
JAE 2.5mm |
|
Category |
2.5mm pitch |
|
Equivalent |
JAE |
Standardized Specification:
Pitch: 2.5mm
Poles: 2-15
Applicable wire: AWG#22-28
Voltage rating: 500V AC/DC
Current rating: 3A AC/DC
Withstand voltage: 1500V AC/minute
Working temperature: -25°C to +85°C
Insulation resistance: 1000MΩ Min
Contact resistance: 20MΩ Max.
Specification on Material:
Terminal: Phosphor Bronze ,Tin plated
Housing: PA66,UL94V-0
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
