| Place of Origin: | China |
| ब्रांड नाम: | JVT |
| प्रमाणन: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2541HPT-02BK-B |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| मूल्य: | बातचीत योग्य |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 2.54mm | type: | open |
|---|---|---|---|
| Rating Current: | 200V AC/DC | contact plating: | tin plated |
| contact material: | Brass | Color: | kinds of |
| प्रमुखता देना: | jumper pin connector,mini pin connector |
||

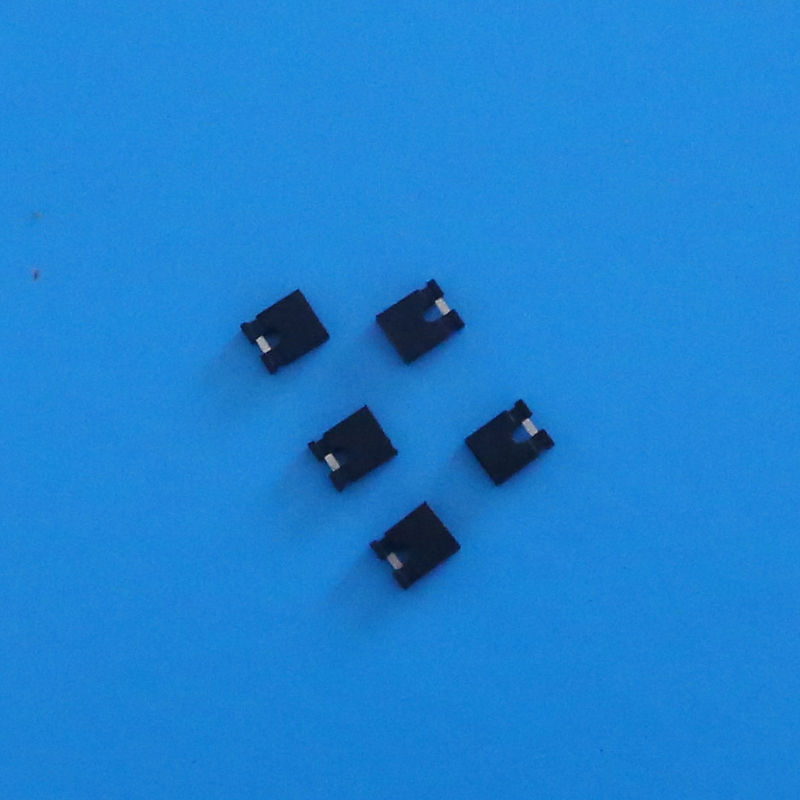

#28 - 32 Wire 2 Poles Mini Female Jumper Connector with PA66 UL94V-0 Housing
2.54mm Mini Jumper Connector ,2poles ,open type ,balck
Datasheet (PDF) & Other Documents Download center:
Specification Standardized:
|
Pitch |
2.54mm |
|
Poles |
2 |
|
Applicable wire |
#28-32 |
|
Rating Voltage |
500V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Operating temperature |
-40°C to +105°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Material Specification :
Housing: PA66,UL94V-0
PIN: Brass,Gold plated
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
