| Place of Origin: | China |
| ब्रांड नाम: | JVT |
| प्रमाणन: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT8001HNO-06 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| मूल्य: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Application: | Signal, Wire-to-board | equivalent: | Molex 2510 |
|---|---|---|---|
| Pitch - Mating Interface: | 2.54mm | poles: | 2 - 15 |
| Category: | Crimp Housings | Flammability: | 94V-0 |

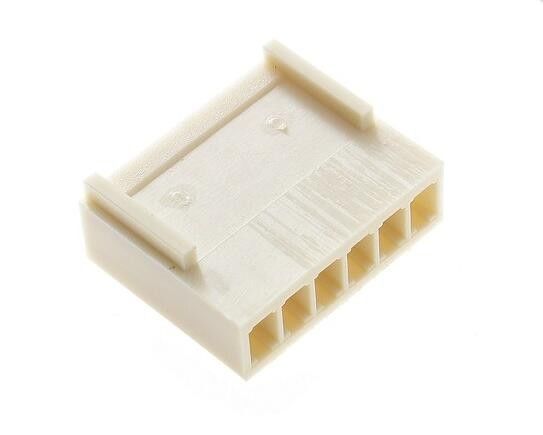

Connector housing 6pins, beige colour eqiv. MOLEX 2510 wire to board connector
Datasheet (PDF) Download :
JVT8001 series is offered in wire-to-board options. It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.
A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.
Specification Standardized:
Insulator Material:PA66
Insulator Flammability: UL94V-0
Terminal Material: Phosphor bronze or brass
Operating temperature: -25 + 85°C
Climatic category (IEC): 55/125/21
Operating Humity range: Annual mean 75%
Insulator color: beige
Application
Our products are widely used in a variety of markets and applications, including:
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
