| Place of Origin: | China |
| ब्रांड नाम: | JVT |
| प्रमाणन: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2547H256T-XXRA-U60-S |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| मूल्य: | Negotiation |
| Packaging Details: | 1000pcs/ Reel |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T in advance |
| Supply Ability: | 300000 per week |
| Pitch: | 2.54mm | Type of Row: | Single Row |
|---|---|---|---|
| Color: | Black | Plating: | Gold Flash |
| Standard: | PA6T | Type: | SMD |

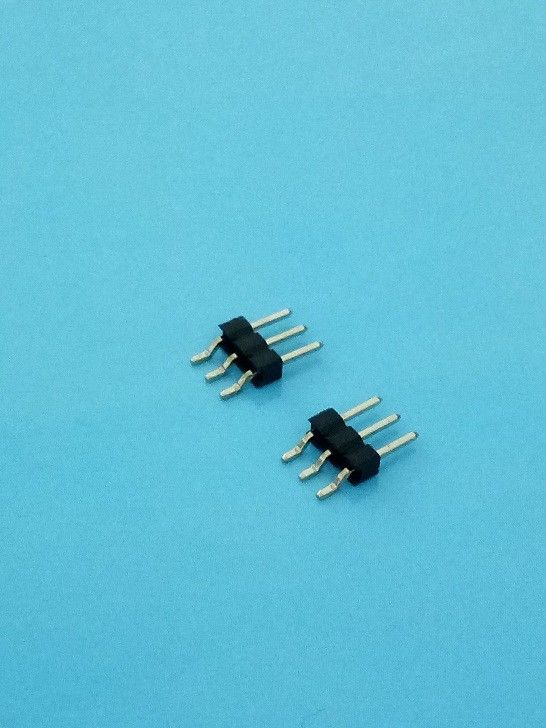

2.54mm Pitch Single Row SMD Gold flash Pin Header with Glass Filled PA6T Material
Specification Standardized:
| Pitch |
2.54mm |
|
Color |
Balck |
|
Type |
RA |
|
Rating Voltage |
500V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
500V AC/minute |
|
Operating temperature |
-40°C to +105°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max |
Material Specification :
Housing: PA6T,UL94V-0
PIN: Brass,Gold plated
Drawing:
Payment Details:
Payment Terms:T/T in advance
Minimum Order:5000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
